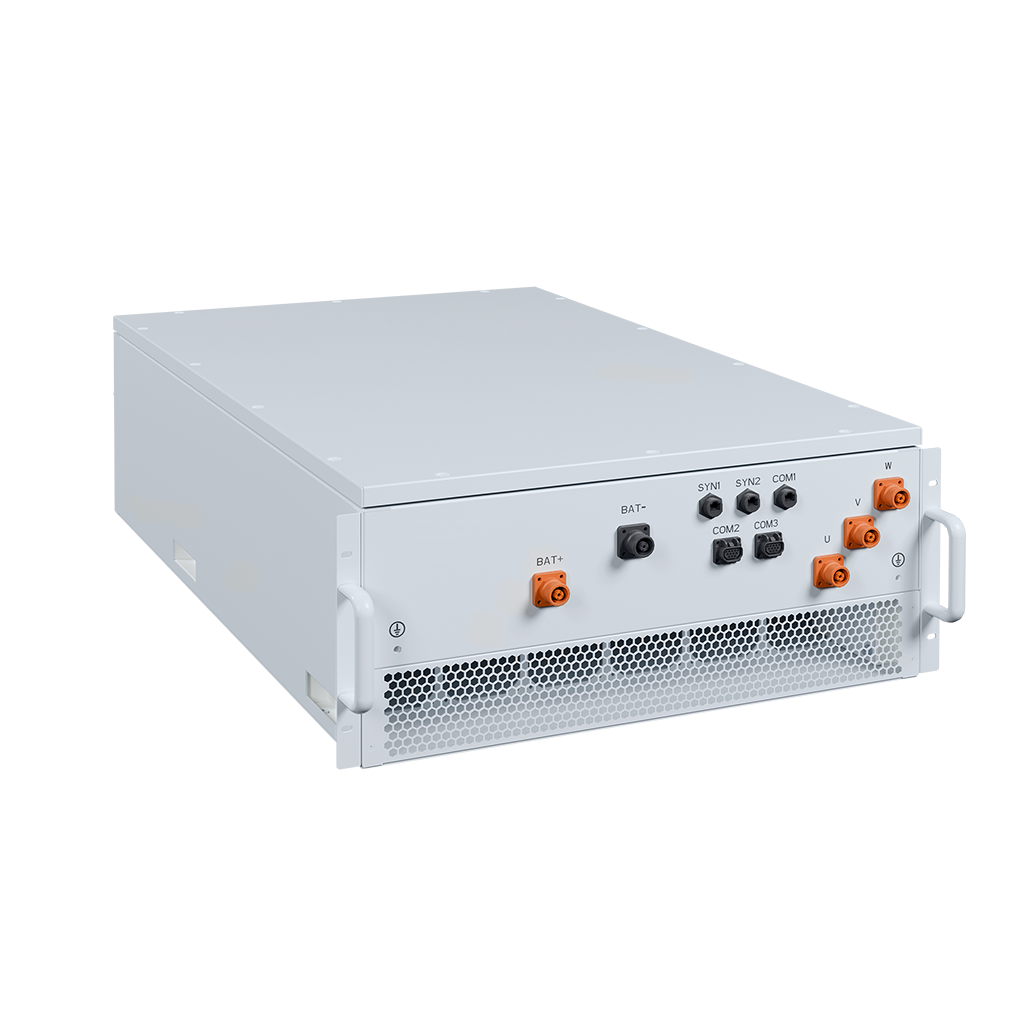

PCS 135-225kW
Power Conversion System
Customer Values
High Efficiency
- Three-level topology, up to 99% conversion efficiency with minimal loss
- Supports 1500Vdc battery systems for higher system efficienc
Intelligent Control
- Cluster-level precise management and capacity control
- Full four-quadrant operation with fast active & reactive power response
Flexibility
- Modular design for easy installation and maintenance
- Strong grid adaptability with high/low voltage ride-through (HVRT/LVRT)
Technical Specifications
TAA-186kW
TAA-135kW
TAA-215kW
TAA-225kW
AC Rated Power
186kW
DC Voltage Range
1000~1500V
Max. DC Current
166 A / 174A
Ingress Protection
IP65
Dimensions (W*D*H)
650*295*950 mm
PV Max. Efficiency
99%
AC Rated Power
135kW
DC Voltage Range
1000~1500V
Max. DC Current
203 A / 212 A
Ingress Protection
IP65
Dimensions (W*D*H)
650*295*950 mm
PV Max. Efficiency
99%
AC Rated Power
215kW
DC Voltage Range
1000~1500V
Max. DC Current
191A / 200A
Ingress Protection
IP65
Dimensions (W*D*H)
650*295*950 mm
PV Max. Efficiency
99%
AC Rated Power
225kW
DC Voltage Range
1000~1500V
Max. DC Current
200A / 210A
Ingress Protection
IP65
Dimensions (W*D*H)
650*295*950 mm
PV Max. Efficiency
99%
