AC 300kW Power

Control Cabinet

Features

Adaptable
  • Support PV storage charging scene, microgrid, backup power; Rack-mounted modular design, high flexibility for configuration and expansion
Efficient
  • High conversion efficiency &energy utilization rate
Smart
  • Support operation monitoring, energy management, and remote device upgrading

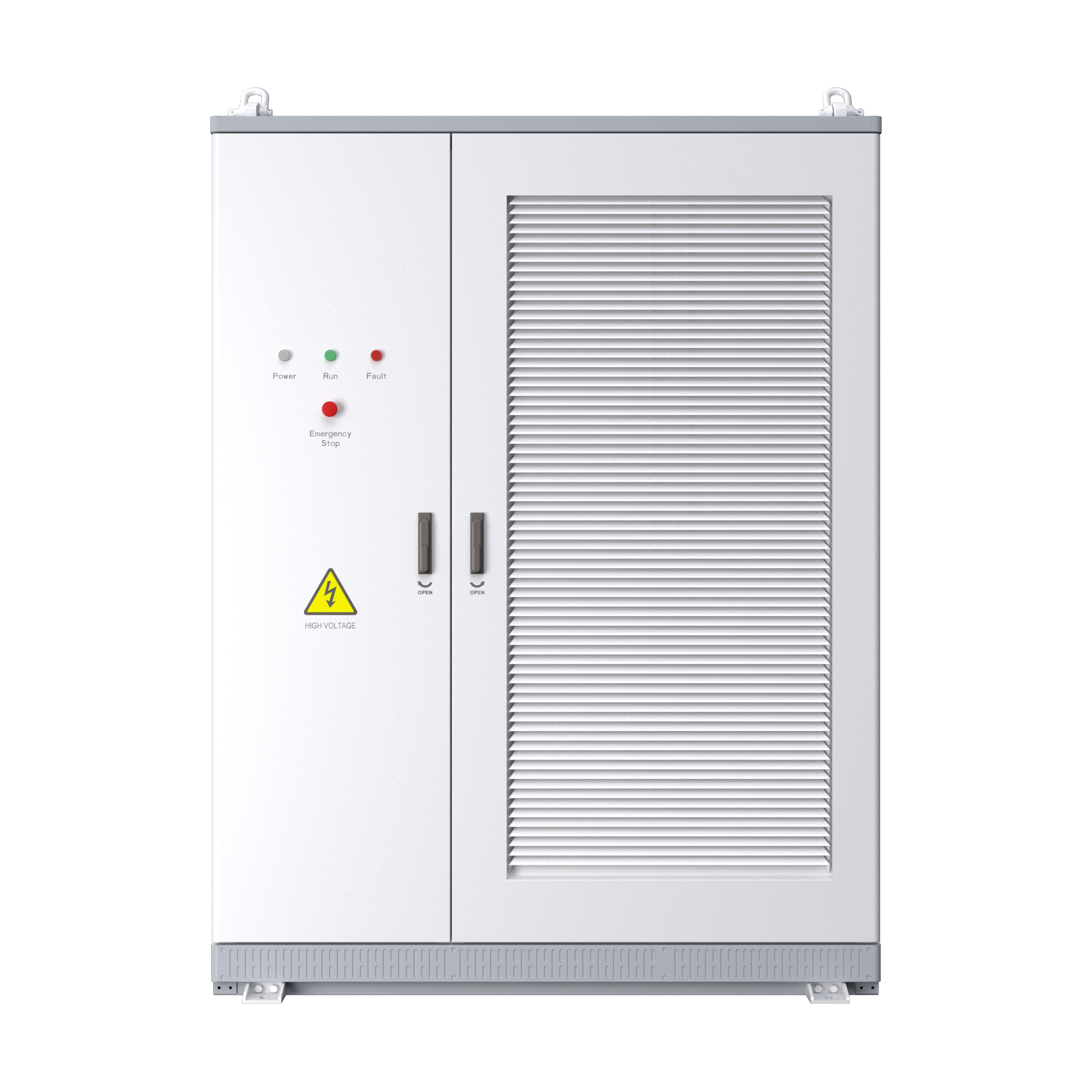

AC Control Cabinet Series, an intelligent AC controller designed for PowerCore C&I ESS and other commercial and industrial energy storage systems. The modular design ensures easy functionality expansion and maintenance, making it adaptable to a variety of complex scenarios.

Technical Specifications

WH-TIANWU-300TS(DC300)-A
WH-TIANWU-300TS-A
AC 100kW 3

AC Rated Power

300kW

DC Voltage Range

500~950V

Max. DC Current

220A

Access PV

Support

PV Rated Power

300kW

Ingress Protection

IP54

Dimensions (W*D*H)

1750*1350*2300mm

Weight

~3t

AC 300kW 3

AC Rated Power

300kW

DC Voltage Range

500~950V

Max. DC Current

220A

Access PV

Nonsupport

Ingress Protection

IP54

Dimensions (W*D*H)

1000*1350*2100mm

Weight

~2.9t
